200-4000W Twin Tube Infrared Heating Lamp with 3000-5000h Lifespan and 55-575V Voltage

Product Categories
Guangdong Youhui Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

200-4000W Twin Tube Infrared Heating Lamp with 3000-5000h Lifespan and 55-575V Voltage

  • 1
  • 2
  • 3

Brand Name : UVIR

Model Number : THW100027

Certification : CE & ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Delivery Time : 15 Work day

Packaging Details : Each lamp in a cylinder .Then in a professional plywood box

Lifespan (hours) : 3000-5000h

Product name : Infrared Heating Lamp

Tube Material : Clear Quartz Glass

Material : Glass tube

Coating : White

Total length : 50-1500mm

Heating length : 50-1500mm

Watt : 200-4000W

Voltage : 55-575V

Dsgn Type : B

Base : TC01

Contact Now


Product Specifications
Lifespan (hours) 3000-5000h
Product name Infrared Heating Lamp
Tube Material Clear Quartz Glass
Material Glass tube
Coating White
Total length 50-1500mm
Heating length 50-1500mm
Watt 200-4000W
Voltage 55-575V
Dsgn Type B
Base TC01
Key Features
  • Manufactured from imported high-end quartz tube
  • Extended lifespan of 3000-5000 hours
  • High efficiency with over 85% heat efficiency at full power
  • Energy-saving reflective layer (gold or non-organic) for concentrated radiation
  • Clear heating process without surface corrosion or dropping off
  • Quick controllable heating time as needed
  • Clean and odorless operation with no contamination risk
  • Customizable wavelength, dimensions, filaments to meet requirements
  • Energy efficient with smaller footprint and superior heating results

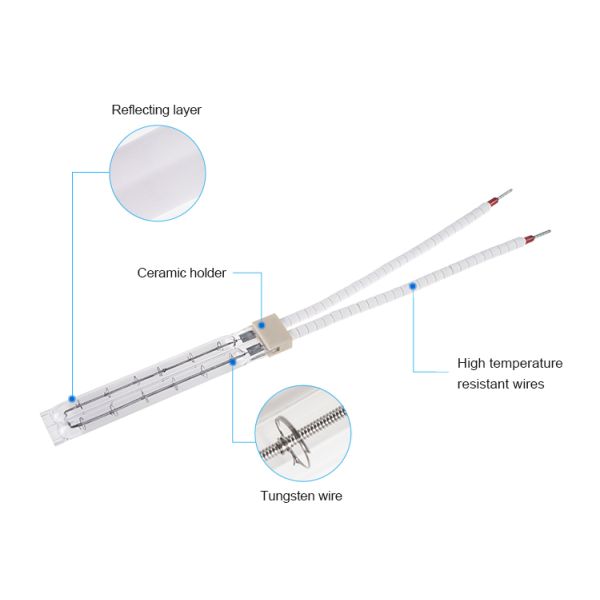

Main Components
  1. Fused silica
  2. Tungsten heating elements
  3. Supports for heating wire
  4. End plate and ceramic end
  5. Wire leads
  6. Reflective layer (shown: gold layer)
  7. Proprietary gas composition
200-4000W Twin Tube Infrared Heating Lamp with 3000-5000h Lifespan and 55-575V Voltage 200-4000W Twin Tube Infrared Heating Lamp with 3000-5000h Lifespan and 55-575V Voltage 200-4000W Twin Tube Infrared Heating Lamp with 3000-5000h Lifespan and 55-575V Voltage

200-4000W Twin Tube Infrared Heating Lamp with 3000-5000h Lifespan and 55-575V Voltage
200-4000W Twin Tube Infrared Heating Lamp with 3000-5000h Lifespan and 55-575V Voltage
Stock and Standard Models
Voltage (V) Wattage (W) Twin Tube Total Length Heated Length Disgn Type Gold White Clear
55 400 11x23 115 50 B THG100151 THW100025 THC100026
115 400 11x23 115 50 B THG100152 THW100026 THC100027
115 450 11x23 70 25 B THG100153 THW100027 THC100028
115 450 11x23 72 25 B THG100154 THW100028 THC100029
115 600 11x23 145 80 B THG100155 THW100029 THC100030
115 900 11x23 170 115 B THG100156 THW100030 THC100031
115 1000 11x23 192 127 B THG100157 THW100031 THC100032
115 1100 11x23 205 140 B THG100158 THW100032 THC100033
120 700 11x23 140 89 B THG100159 THW100033 THC100034
120 800 11x23 167 102 B THG100160 THW100034 THC100035
120 1180 11x23 250 150 B THG100161 THW100035 THC100036
230 1200 11x23 405 340 B THG100162 THW100036 THC100037
230 1500 11x23 300 200 B THG100163 THW100037 THC100038
230 2350 11x23 410 355 B THG100164 THW100038 THC100039
230 3000 11x23 650 500 C THG100165 THW100039 THC100040
230 500 15x33 510 500 B THG100114 THW100061 THC100061
400 4800 15x33 500 800 B THG100141 THW100062 THC100062
400 6200 15x33 1100 1030 B THG100002 THW100063 THC100063
400 15720 15x33 850 1334 H THG100186 THW100064 THC100064
480 6000 15x33 1550 1000 B THG100140 THW100065 THC100065

If the parameter is not suitable for you, please contact us. We have a professional team that will provide technical knowledge and drawings for custom solutions.

200-4000W Twin Tube Infrared Heating Lamp with 3000-5000h Lifespan and 55-575V Voltage
Heating Effect

The infrared short wave radiator is designed according to the characteristics of the material to be heated. It uses rays at the peak of the infrared wave that can be absorbed by the product to maximize energy absorption, achieving optimal heating results with minimal energy consumption.

Our Services & Strength
  • Expert sales teams for accurate communication
  • Professional technical teams for new product development
  • Technical production teams for assembly line production
  • Expert quality inspection teams for quality control
  • Experienced after-sales teams for customer support
Frequently Asked Questions
1. Where is your factory located? How can I visit there?

Our factory is located in JiangMen City, Guangdong Province, China. You can fly to Guangzhou BAIYUN airport directly. We warmly welcome all clients to visit us!

2. How does your factory do regarding quality control?

"Quality is priority." We attach great importance to quality control from beginning to end. Our factory has gained CE, ISO9001, RoHS, and SGS certifications.

3. How I make the order from your company?

We typically provide quotes within 24 hours of your inquiry. Sample production takes 5-7 days, or longer for special customized heating lamps.

4. Do you offer guarantee for the products?

Yes, we provide product guarantees. The specific guarantee period will be confirmed in our formal quotation along with the product data sheet.

5. How long shall I wait for quotation?

We typically provide the best price within 24 hours after your inquiry. For special customized heating lamps, the quotation process may take longer.
